荷兰金宝技术相机

ACB-HVSA Hasselblad-500系列镜头接环

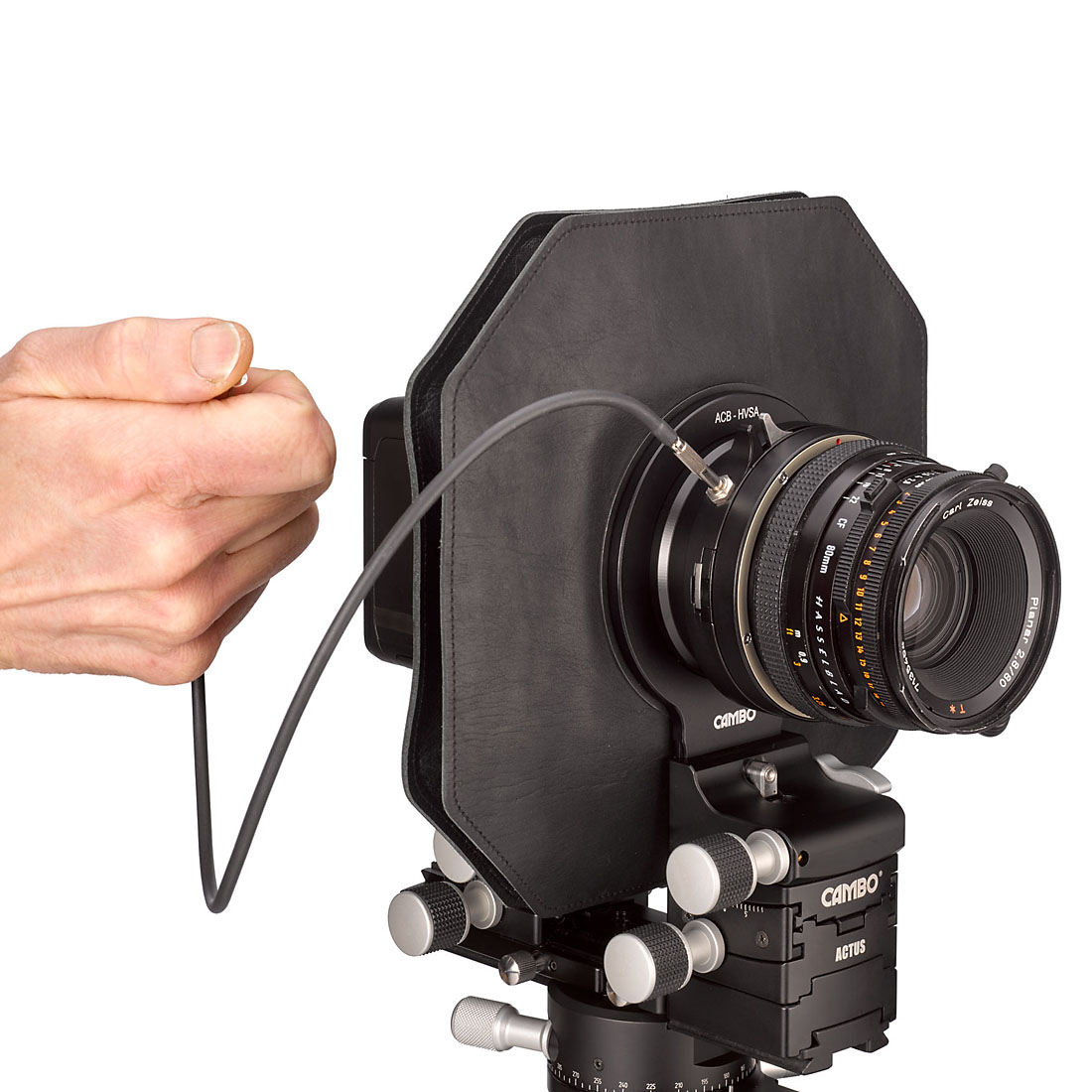

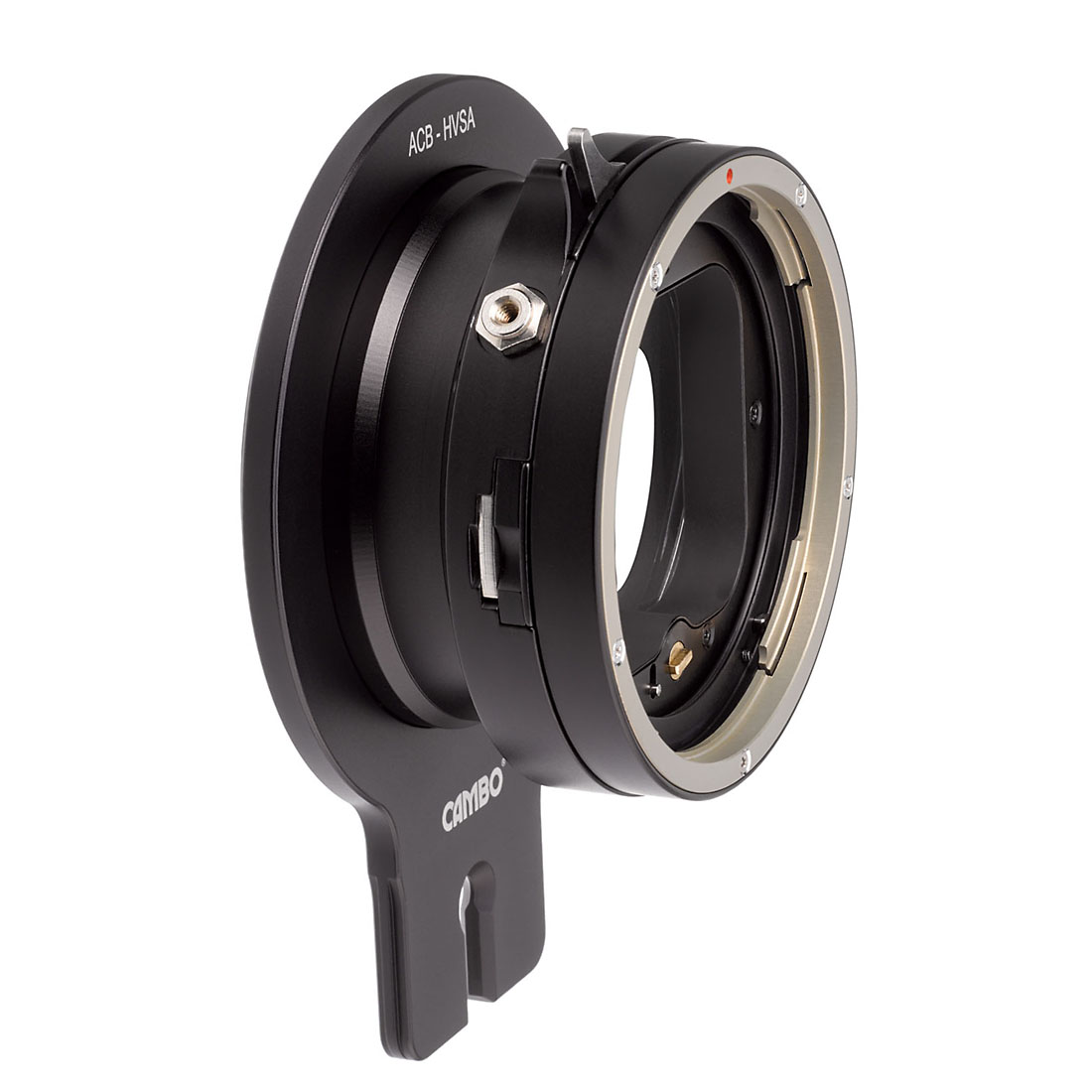

This ACB-HVSA lensplate allows you to mount lenses from the Hasselblad-500 series, in combination with the Actus series camera and adds extra functionality for the lens' leaf shutter to be activated and released.

This adapter will work with virtually any digital back that can be triggered externally by means of the flash sync contact.
Next to that it can also be used with those digital backs that have a built-in ES-shutter (sensor activated electronic shutter), which work as shutterless digital back, such as the PhaseOne IQ3-100 and the new IQ-4 series.
The aperture of the lenses can be set manually, the shutter can be cocked manually and released with the supplied cable release.
The practical use of lenses may be limited to those that have enough image circle coverage for the used digital back when using shifts.

The availability of Hasselblad lenses of the 500 series goes back a long time and this also gives you the opportunity to use particular old style legacy lenses, as well as very long focal lengths without the extreme physical extension of symmetric LF lenses.


note: Hasselblad lens not included.


  • 产品详情

    Product details

  • 技术参数

    Technical details

  • 下载

    Downloads

  • 问答功能

    F&Q

The WRS-HVSA acceps all lenses that fit to the Hasselblad 500 series.


Intended primarily to be used with digital backs mounted to an Actus-DB version or Actus-G with DB frame.
However, it can also be used in combination with camera bodies that have an internal shutter, without activating the adapter's shutter.


total height
108 mm
width
depth
85 mm
61 mm
weight
300 gram


Cable release
included


Note: there is no electronical connection between digital back and lens on this adapter.
