ACTUS-G VIEW CAMERA

The Cambo ACTUS-G is derived from the ACTUS-Mini camera system. It combines traditional view camera techniques with the latest capture technology. The Cambo Actus-G is a true cross-platform camera base within the Actus family.

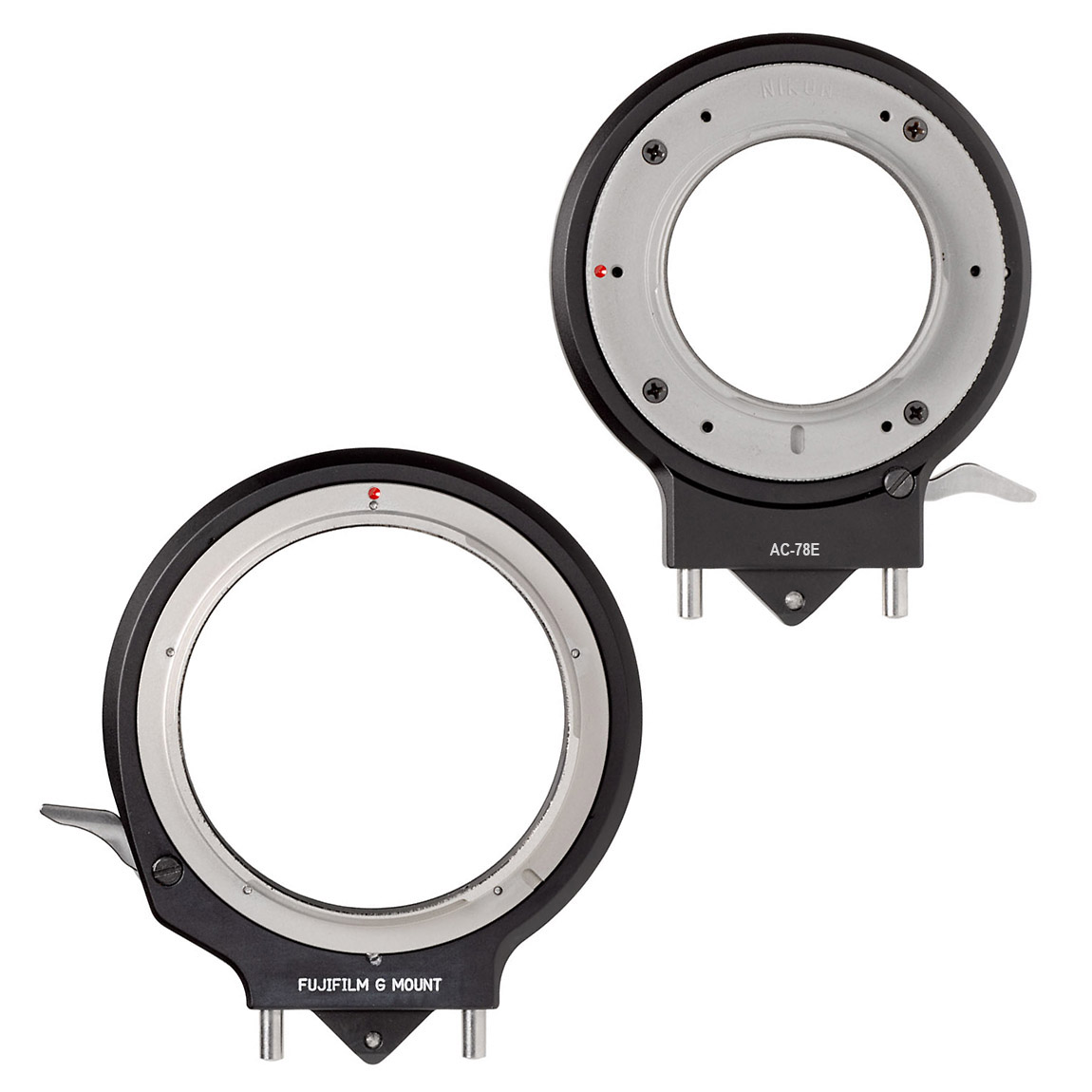

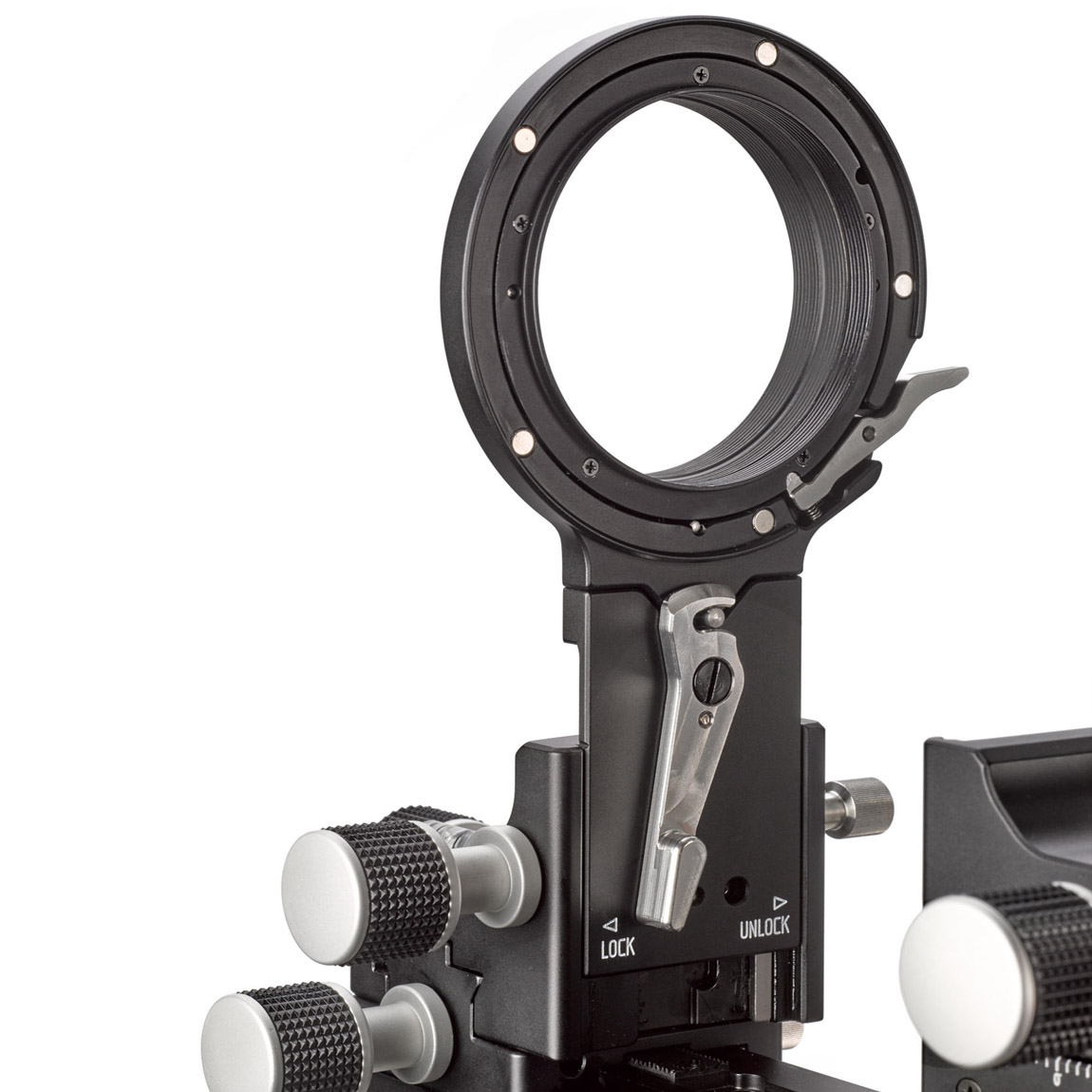

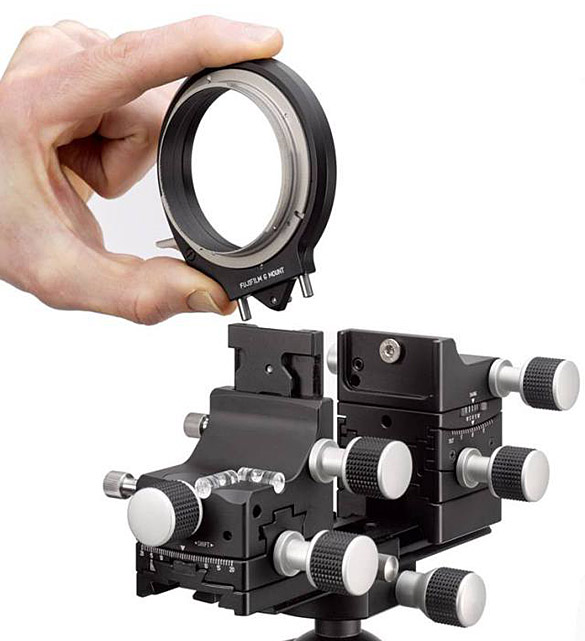

This ACTUS-G version features a mount for an interchangeable bayonet. It can be used with many different camera options, including Fujifilm's GFX-50s, Hasselblad's X1D, all bayonets from the Actus Mini by using the AC-78E holder, and even with an interchangeable frame for digital backs.

Using view camera movement the photographer will be able to be more versatile, be more creative and will be getting more professional results much faster than before.
Mirrorless system camera bodies can be used as digital back, while the Cambo ACTUS will function as tilt-shift and swing adapter with view camera movements for each lens that is being used with this combination!!
Size matters, the Cambo ACTUS has been designed to give maximum functionality with minimal dimensions to support portability at ease.
The Cambo ACTUS-Mini series is small and lightweight and fits easily in a small case.

Cambo ACTUS shown with optional lenses and optional camera body.

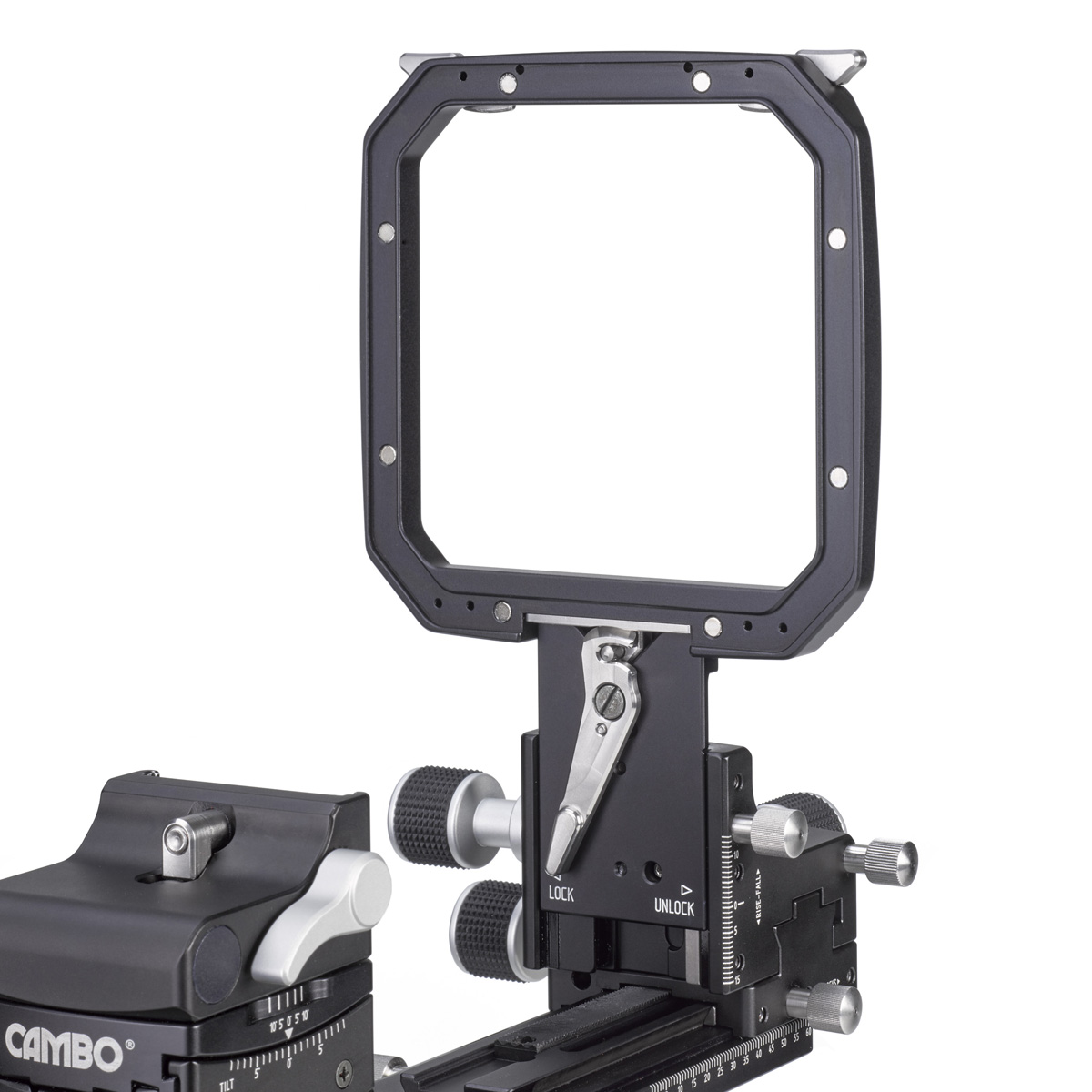

The basic configuration of a Cambo ACTUS-G consists of a monorail, front assembly without lensplate, a rear frame which can accept acamer a bayonet holder and a detachable standard bellows which is part of the ACTUS configuration.


  • 产品详情

    Product details

  • 技术参数

    Technical details

  • 下载

    Downloads

  • 问答功能

    F&Q

Expand the usability of your camera system
• View camera movement for selective sharpness
• Rear Shift movement to stitch wider angle images
• Focal plane shifts to increase file size
• Rotation Landscape/portrait built-in
• Built-in macro extension
• Use of various lens designs
• Interchangeable bellows options

Enhance your creativity with the Cambo ACTUS
• Use tilts and swings to place exact sharpness where needed
• Create selective optical unsharpness
• Use more of the image circle of your lenses
• Stitch your images without changing the lens position
• Focus closer and enlarge your subject without extension rings
• Experiment with other system lenses and medium format lenses
• Ideal for use on location, minimal size and weight

Experience the possibilities of the Cambo ACTUS-G
• Small size for easy portability - see image above
• Front standard offers geared tilt / swing both on-axis
• Lensplates are quickly interchangeable
• Quick slide focus adjustment rail
• Fine focus adjustment with precision gearing
• Shift movements vertical/horizontal in the focal plane
• Horizontal movements using precision gearing
• Zero clicks on all movements
• Image centred rotation from landscape to portrait
• Arca compatible monorail, direct fit to Arca compatible heads such Cambo CBH-6 and PCH
• Interchangeable bayonets for Sony E-Mount, Nikon-F, Canon-EOS, Fuji X-series, Fuji GFX series, Micro 4/3, Olympus OMD, Canon-M, Leica-M and Hasselblad X1D or interface mount for PhaseOne, Hasselblad, Sinar and Mamiya Leaf digital backs.


Cambo ACTUS-G Specifications
Size L / W / H:
152 x 115 x 171 mm
Weight:
1150 grams
Front Swing:
360 degrees
Front Tilt:
19 degrees (+10/-9)
Rear Shift Vertical:
27mm (12/15)
Rear Shift Horizontal:
40mm (20/20)
Focus Travel:
up to 134mm (-GFX-sensor)





Lens plates options:
Cambo ACTAR lens series

Copal 0 and 1 (#3 on request)

Hasselblad C Bayonet

M39 Leica thread

Mamiya 645 ProTL bayonet

Mamiya RZ/RB bayonet

Pentax 645 bayonet (for mirror less bodies only)







Available Colours:
Black anodised
